You are here: Rendering > Animation Rendering Parameters

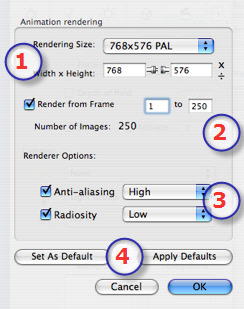

Animation Rendering Settings

Accessible by:

The set values determine the rendering and display of the Preview window.

"Photorealistic" engine rendering options:

Document sizes:

  1. Film size:
  • Select a size from the menu or enter the width and height in pixels.
  • Clicking on the chain icon freezes the width/height proportion.
    Increase/decrease the values by 2 by clicking on the signs.
  1. Render from X to Y Image.
  • Enter the numbers of the corresponding images to calculate a portion of the sequence. First Frame is set to 0.
  • Number of Images: Information on the number of images or selected frames to be rendered to make up the animation.
  1. Renderer Options
  • Radiosity: The calculation times depend on the Normal/Meduim/High value chosen.
  • Anti-aliasing: Anti-aliasing Normal/High

Tip: To save calculation time, select a low value while increasing the Width/Height of the rendering.

  1. Set as Default / Default settings:
  • Enables you to return to the initial parameters of Artlantis or to set the current settings as the default, respectively.



Artlantis User Guide : Animation Rendering Parameters

© 2008 Abvent www.artlantis.com
